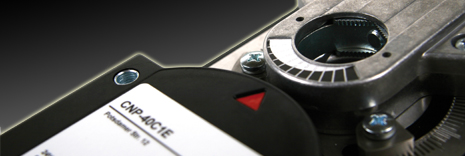

With the development of the Product Line C Elodrive has made another consequent step forward towards high torques. Torque requirements of up to 70 Nm can easily be performed with these new actuators.
On top of the proven Elodrive characteristics we have added additional features such as our 100 % self-locking mechanism, for all models.
Type | CN | CF |
Illustration |
|
|
Torque | 30, 40, 50, 60, 70 Nm | 15 Nm |
Failsafe | - | - |
Running time for 90° < | 90 s | 30 s |
Supply voltage | 24V AC/DC | 24V AC/DC |
On/Off |
|
|
Floating point |
|
|
Proportional 0/2...10V |
|
|
Type | CS | CE |
Illustration |
|
|
Torque | 20 Nm | 30/40 Nm |
Failsafe |
|
|
Running time for 90° < | 90 s | 90s |
Supply voltage | 24V AC/DC | 24V AC/DC |
On/Off |
|
|
Floating point |
|
|
Proportional 0/2...10V |
|
|
