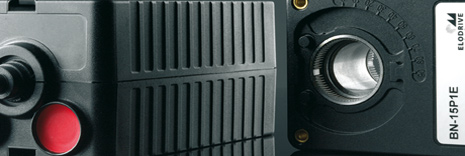

The world’s only actuator product line that has a consistent
housing concept.
Available in just 2 housing lengths and with a torque range of 4 up to 20 Nm, the ELODRIVE product line B covers standard non-spring return, mechanical and electronic FailSafe as well as fast running actuators. All actuators are available up to a protection degree of IP66 without requiring additional protective housings.
Type | BN | BF | BS |
Illustration |
|
|
|
Torque | 5,10,15,20 Nm | 5 Nm | 4 Nm |
Failsafe | - | - |
|
Running time for 90° | 90 s | 30 s | 90 s |
Supply voltage | 24V AC/DC | 24V AC/DC | 24V AC/DC |
On/Off |
|
|
|
Floating point |
|
|
|
Proportional 0/2...10V |
|
|
|
Type | BT | BE |
Illustration |
|
|
Torque | 4 Nm | 10,15 Nm |
Failsafe |
|
|
Running time for 90° | 30 s | 90s |
Supply voltage | 24V AC/DC | 24V AC/DC |
On/Off |
|
|
Floating point |
|
|
Proportional 0/2...10V |
|
|
